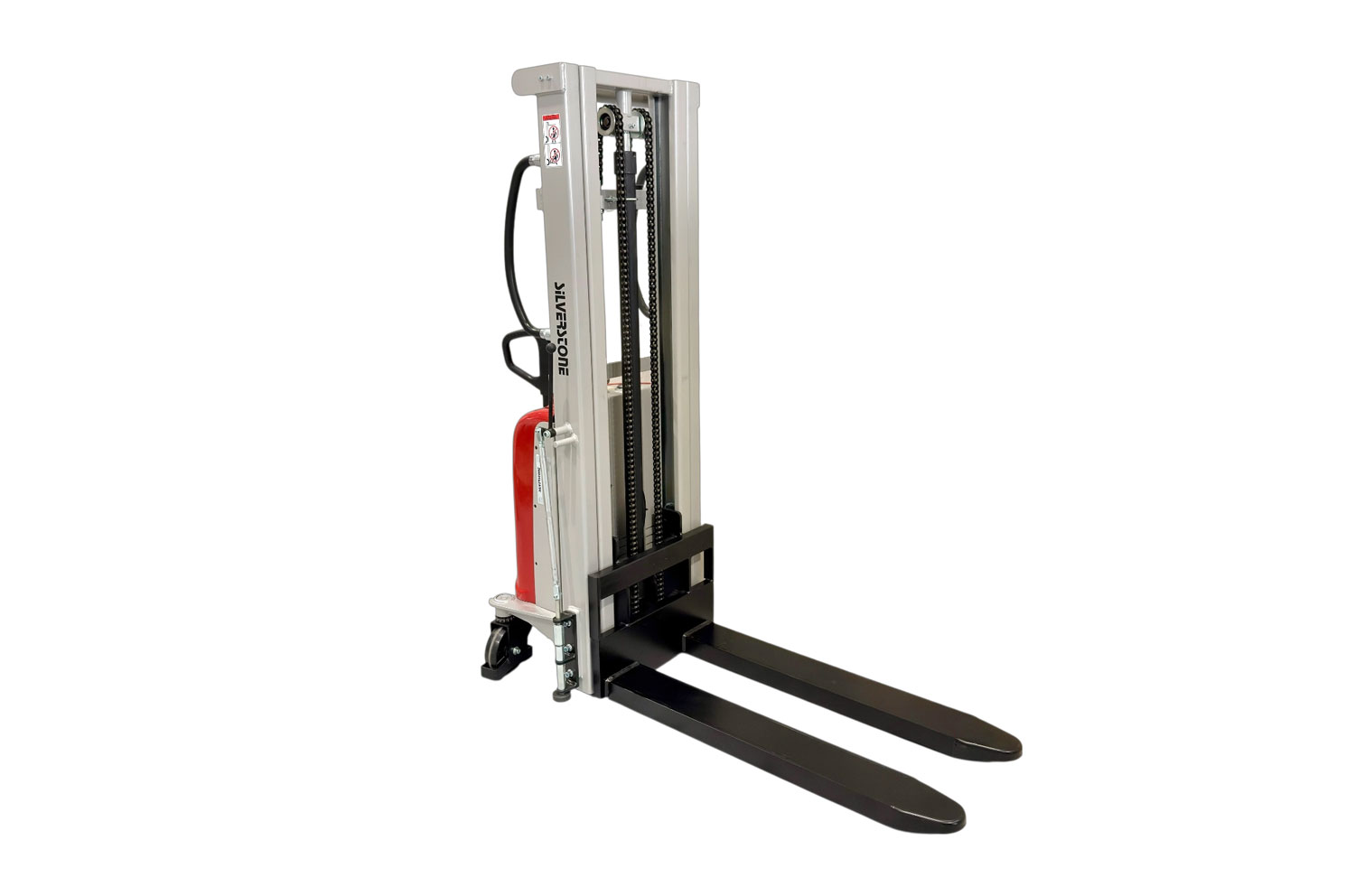

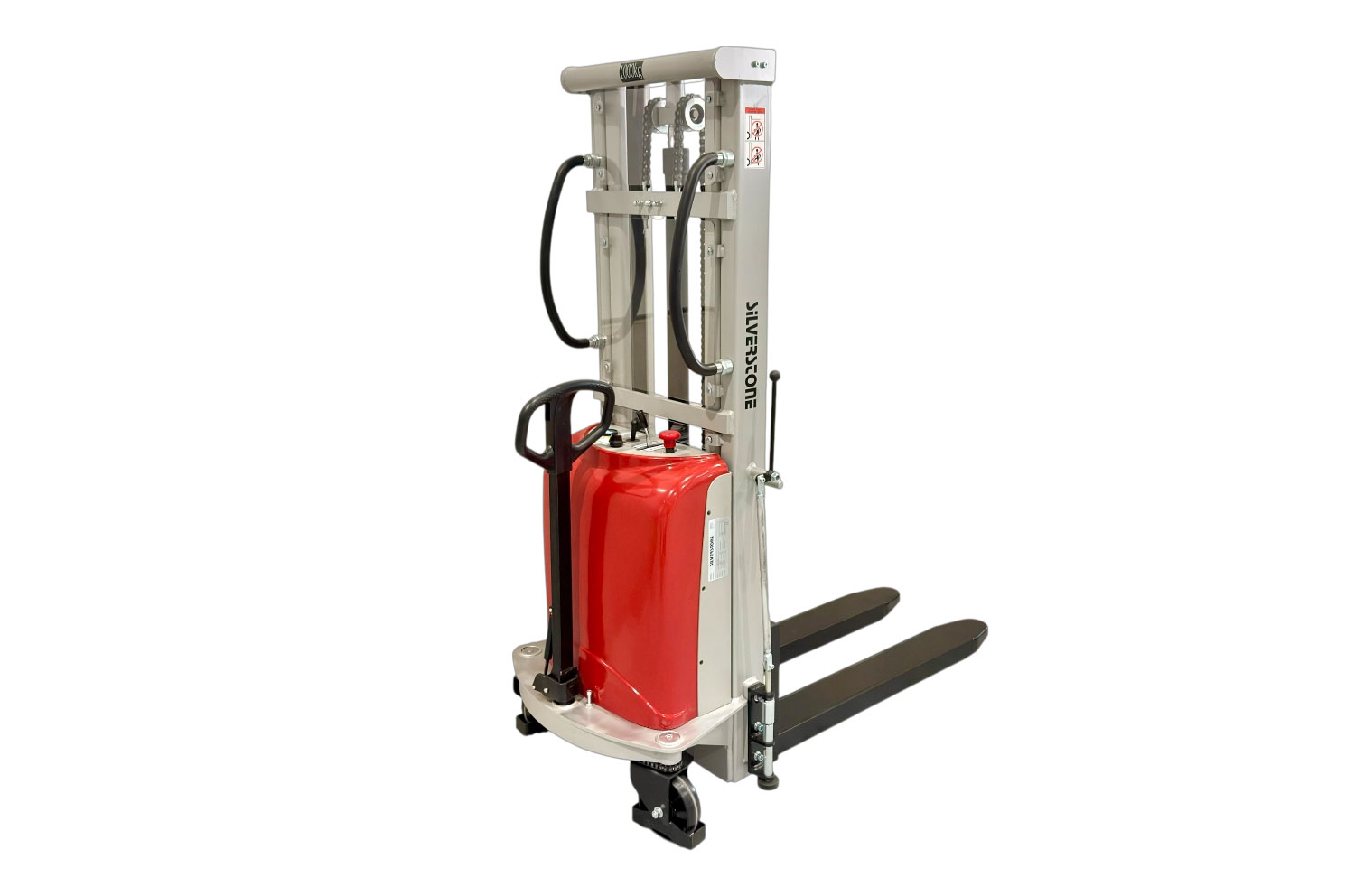

Semi-electric stacker, 2700 mm, 1000 kg
Product code: EMS-1027

Semi-electric stacker suited for intensive handling and continuous lifting. Compact design ensures a small turning radius. Fast lifting/lowering speeds. Easy and smooth steering makes the stacker safe and easy to operate. Service-friendly assembly of hydraulics, electrics and batteries. Large battery, 150Ah/12V, for many working hours per charging. The perfect choice for high productivity requirements in confined spaces.

• Capacity 1000kg
• Lifting height 85-2700mm
• Built-in charger
• Load center 600 mm

• Outer dimensions 1660x800x1920 mm
• Outer fork width 540 mm

• Weight (kg) 460

• Steering wheel ?180x50

• Fork wheel ?74x70

• Turning radius 1350 mm

• Lowering speed, load/no load 190-400

• Lift motor (kW) 1,6

• Height with mast in highest position 3355 mm
• Fork dimensions (LxWxH) 1150x160x50 mm

• Battery (V/Ah) 2x12/75

• Battery type Maintenance free

• Lifting speed (mm/s) 130-80

• Lifting mast Duplex 2-stage


Product code: EMS-1027

Delivery time: specified on order

Price/pcs 2776,- + 24% VAT
