NEW

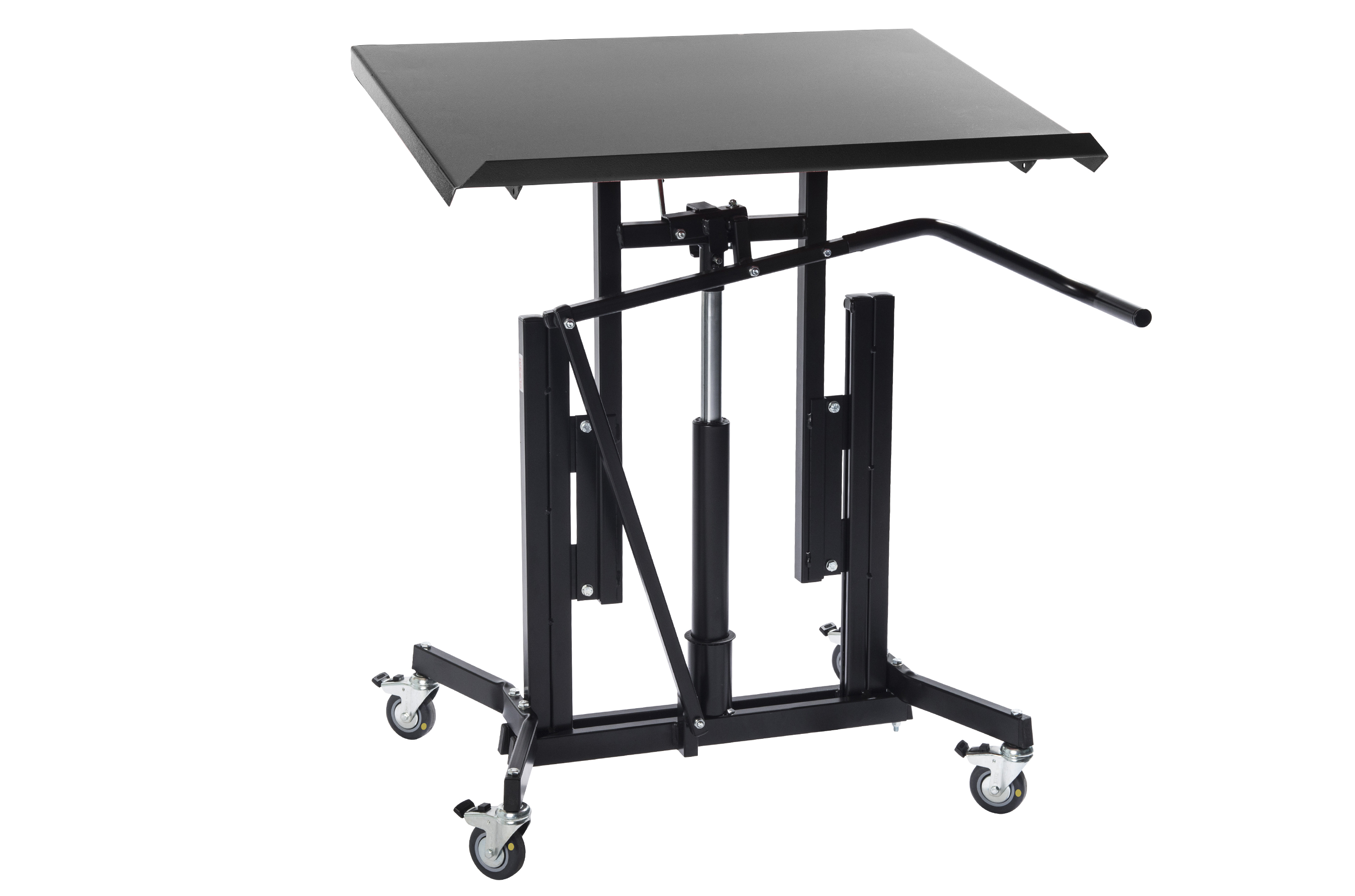

Global Midi ESD worktable, 800 x 600 mm
Product code: 80 14 06
| Delivery time approx: 2-3 weeks |
Products with ESD/EPA labeling are specially designed for use in electronics industry, where electro static discharge (ESD) could harm sensitive electronic components such microchips etc. All our ESD/EPA labelled products meet the requirements of the EN 61340-5-1 standard.
Flexible and reliable ESD worktable, tested and approved for use in ESD‑protected areas and developed for assembly, testing and handling of ESD‑sensitive equipment in EPA environments.
The table is manufactured in metal with a conductive surface, ensuring controlled and safe dissipation of static electricity to ground*.
With its robust construction and larger work surface, Global Midi ESD is suitable both as a standalone workstation and as part of complete ESD workstations. The table can be used in production, assembly and test environments where high demands are placed on functionality, stability and ESD safety.
Global Midi ESD is a reliable and versatile solution for industrial environments where workflows require space, flexibility and effective ESD protection.
* To ensure effective ESD protection, the worktable must always be used with an ESD table mat, for example an ESD rubber mat, ESD plastic containers or similar.
Dimensions – Global Midi ESD
Table top: 800 × 600 mm
Base: 690 × 530 mm
Height adjustment: 730–980 mm
Additional information
Table top tilt: 0–25°
Maximum load: 125 kg
Gas spring lifting capacity: 25 kg
Castors: 4 pcs. Ø75 mm, all with brakes
The Global Midi ESD is an easy‑to‑adjust work table with a wide range of applications, offering flexibility and reliability in ESD‑sensitive working environments.
The table is manufactured in metal with a conductive surface, ensuring controlled and safe dissipation of static electricity to ground*.
With its robust construction and larger work surface, Global Midi ESD is suitable both as a standalone workstation and as part of complete ESD workstations. The table can be used in production, assembly and test environments where high demands are placed on functionality, stability and ESD safety.
Global Midi ESD is a reliable and versatile solution for industrial environments where workflows require space, flexibility and effective ESD protection.
* To ensure effective ESD protection, the worktable must always be used with an ESD table mat, for example an ESD rubber mat, ESD plastic containers or similar.
Dimensions – Global Midi ESD
Table top: 800 × 600 mm
Base: 690 × 530 mm
Height adjustment: 730–980 mm
Additional information
Table top tilt: 0–25°
Maximum load: 125 kg
Gas spring lifting capacity: 25 kg
Castors: 4 pcs. Ø75 mm, all with brakes
The Global Midi ESD is an easy‑to‑adjust work table with a wide range of applications, offering flexibility and reliability in ESD‑sensitive working environments.
26 kg
|
